Cyclodextrin Polymers

Cyclodextrin polymers (CDPs) are functional polymeric materials with immense application potential due to their unique "hydrophobic interior, hydrophilic exterior" cavity structure. This dual-nature design arises from cyclodextrin's (CD) ability to host guest molecules within a hydrophobic cavity, while the outer surface remains hydrophilic, lending stability and versatility. The structural adaptability of cyclodextrin, combined with the robustness of polymer matrices, creates a wide range of applications for CDPs in areas like food science, catalysis, cosmetics, environmental science, medicine, and separation technologies.

Structure and Types of Cyclodextrin Polymers

CD-based polymers integrate CDs as primary components, essential in forming desired structures, properties, and functions. The main types of CD-based polymers include:

• CD-Based Pseudorotaxanes (CD-PRs): CDs act as host molecules, threading onto guest polymers, typically linear polymers, to form threaded structures. The polymer ends are capped with bulky groups to prevent the CDs from dethreading, thereby stabilizing the polymer chains.
• Grafted Cyclodextrin Polymers (G-CDPs): CDs are grafted into polymer chains or onto substrates, serving as polymeric hosts for numerous guest molecules. G-CDPs enhance the structural flexibility and guest-host interaction capacity of the resulting polymer.
• Cross-Linked Cyclodextrin Polymers (C-CDPs): Here, CDs participate as co-monomers to form gel materials. These gels, such as soluble microgels, hold promise particularly in drug delivery due to their biocompatibility and controlled release capabilities.
• CD-Based Star Polymers (Star-CDPs): CDs serve as central cores around which multi-armed polymers can form. The radial design of star-CDPs provides diverse functionalities, particularly in applications requiring controlled, structured assemblies.

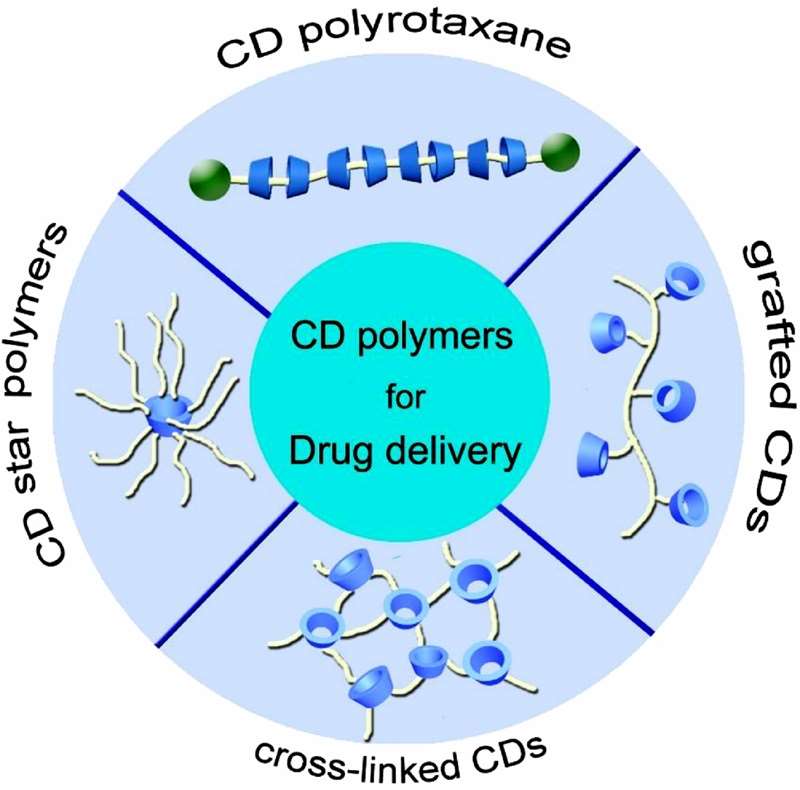

Figure 1. Four types of CD polymers based on structure similarities^[1].

Common Applications

Cyclodextrin Polymers in Analytical and Separation Science

Cyclodextrin polymers play a critical role in separation and analytical sciences, primarily due to their selective guest-host interaction capabilities. In chromatographic applications, CDPs improve the selectivity and efficiency of separations by forming inclusion complexes with target molecules. For instance, in liquid chromatography, CDPs modify stationary phases, enhancing the separation of enantiomers and hydrophobic compounds. Moreover, they are effective in solid-phase extraction (SPE) processes for purifying complex mixtures by binding selectively to specific molecules, enabling more refined and precise separations.

Figure 2. The schematic illustration of the related adsorption mechanisms of CS-ED-CD toward Cd(II) and BPS^[1].

Drug Delivery Applications of Cyclodextrin Polymers

Cyclodextrin polymers are also of high interest for drug delivery systems due to their biocompatibility and structural adaptability. The cross-linked microgels of C-CDPs provide a controlled-release platform, ensuring that drugs can be delivered to target sites in a regulated manner. Additionally, grafted and star-CDPs can encapsulate hydrophobic drugs within their cavities, improving solubility and stability in biological environments. This controlled encapsulation and release mechanism offers immense potential in developing safer and more effective pharmaceutical formulations, a focal area of Alfa Chemistry's research and development initiatives.

Figure 3. Schematic illustration of RGD-introduced PR block copolymer and random copolymer^[3].

Catalytic Applications of Cyclodextrin Polymers

CDPs show great potential as catalysts due to their ability to selectively accommodate guest molecules, thereby creating microenvironments that promote specific reactions. By acting as reaction sites, CDPs can facilitate catalysis in organic reactions, including oxidative and reductive processes.C-CDPs are particularly effective in forming catalytic complexes in which the reactants are in close proximity within the CD lumen, thereby enhancing reaction rates and selectivity. In catalytic applications, CDP can also be used as a loading material for catalysts, e.g., Peinemann et al. used azide-modified cyclodextrins crosslinked and polymerized with p-phenylenediacetylene to obtain yellow viscous CDP precipitates in 77% yields. Alfa Chemistry utilizes these properties in the design of catalyst carrier materials to provide novel solutions for improving the efficiency and sustainability of catalytic processes. sustainability of the catalytic process.

Cyclodextrin Polymers in Materials Science

In materials science, cyclodextrin polymers are valued for their ability to create materials with enhanced stability, environmental responsiveness, and functional diversity.

Villalobos et al. investigated the molecular level design of a novel crosslinked cyclodextrin filter membrane, formed by interfacial polymerization of cyclodextrin films. The filter membrane consisted of inexpensive macrocyclic glucose in a shape similar to a hollow truncated cone. The channel-like lumen of cyclodextrin creates many pathways with defined pore sizes in the separating layer, which can efficiently distinguish molecules. The transport of molecules through these membranes is highly sensitive to shape. In addition, the lumen is hydrophobic, while the exterior of the ester cross-link is hydrophilic, resulting in these membranes being highly permeable to polar and non-polar solvents.

Figure 4. This image shows how the β-CD membrane separates molecules based on their shape^[4].

The introduction of cyclodextrins into the graphene family is an important direction in graphene research. Cyclodextrins can improve the water solubility, biocompatibility, and supramolecular screening of materials, and thus may introduce new and interesting properties to these materials. Cyclodextrin-functionalized graphene materials combine graphite properties, olefins' intrinsic properties (high surface area, ease of functionalization, biocompatibility), and the intrinsic properties of cyclodextrins. β-CD-functionalized three-dimensional graphene foams (CDGFs) were successfully synthesized using a simple one-step hydrothermal method by Wang and Zhe.

Figure 5. The β-CD functionalized 3D structured graphene foam (CDGF) was applied for the adsorption of Cr(VI)^[5].

Alfa Chemistry is actively exploring these applications to advance material design solutions that utilize the unique structural and functional properties of CDP to create specialized products for industrial and research purposes.

By continuously advancing cyclodextrin polymer products, Alfa Chemistry contributes to the broadening field of functional polymer materials, enabling innovative applications across diverse industries. For more information, please feel free to contact us.

It should be noted that our our products and services are for research use only, not for clinical use.
