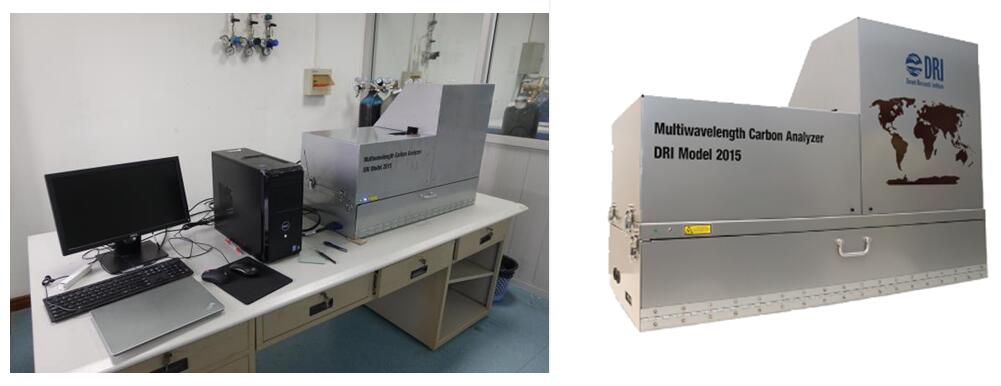

DRI Model 2015 Multi-wavelength Carbon Analyzer(MCA)
DRI Model 2015 Multi-wavelength Carbon Analyzer(MCA)
Through our global network of testing experts and analytical equipment including chromatography (HPLC, GC, GC/MS) and atomic
absorption spectroscopy (AAS, GFA, FIAS), Our goal is to provide test services as efficiently
as possible to maximize our customers' profits. For more information about our services,
contact one of our experts today.
Note: this service is for Research Use Only and Not intended for clinical use.
MCA can quantitatively analyze the OC, EC (or BC) deposited on the filter and the corresponding carbon components in different temperature and air environments. In the presence of Multiwavelength, it can be applied in different carbon components in source resolution. Multiwavelength light sources measure both reflected and transmitted light, allowing for the reproducibility and comparison of other thermal/optical carbon analysis methods, which provide a good analysis of the related properties of carbon aerosol.
Applications
Air quality and climate change
Particle source analysis
Carbon particle analysis
The Particle Speciation Trend Network (STN)
Specifications
Specifications-DRI Model 2015 MCA
Measurement Range
0.05 to 750 μg carbon/cm2
Minimum Detection Limit(MDL)
Total OC: 0.43 μg/ cm2
Total EC: 0.12 μg/ cm2
Total Carbon: 0.49 μg/ cm2
Wavelengths
405, 445, 532, 635, 780, 808, and 980 nm
Gases Required
Ultra-high purity (UHP) helium (hydrocarbon free, >99.999% purity)
10% oxygen in UHP helium
5% methane in UHP helium
Compressed air
Data Acquisition Interval
1 second
Environmental Operating Conditions
Indoor laboratory environment:
Temperature: 10 to 35 °C
Relative Humidity: 0 to 90%, noncondensing
Strengths
The instrument has its own widely used IMPROVE_A carbon analysis protocol.
Have high optical measurement sensitivity.
The NDIR CO2 detector is used, so no methane converter and hydrogen gas are required for FID detector.
Less helium consumption.
High accuracy during measurement.
LabVIEW-based software provides a more user-friendly interface and instrument control interface.
Ergonomic design for easy instrument maintenance and repair.
