Asbestos Testing

Zholobenko, Vladimir, et al. Journal of Hazardous Materials 403 (2021): 123951.

Asbestos exposure is a significant health hazard linked to severe lung diseases, making reliable in situ detection in real-life samples crucial. This study investigates the potential of three spectroscopic techniques-mid-infrared ATR-FTIR, NIR spectroscopy, and Raman microspectroscopy-for identifying all six types of asbestos. Among these, NIR spectroscopy is highlighted as the most promising method for practical applications, particularly in construction materials.

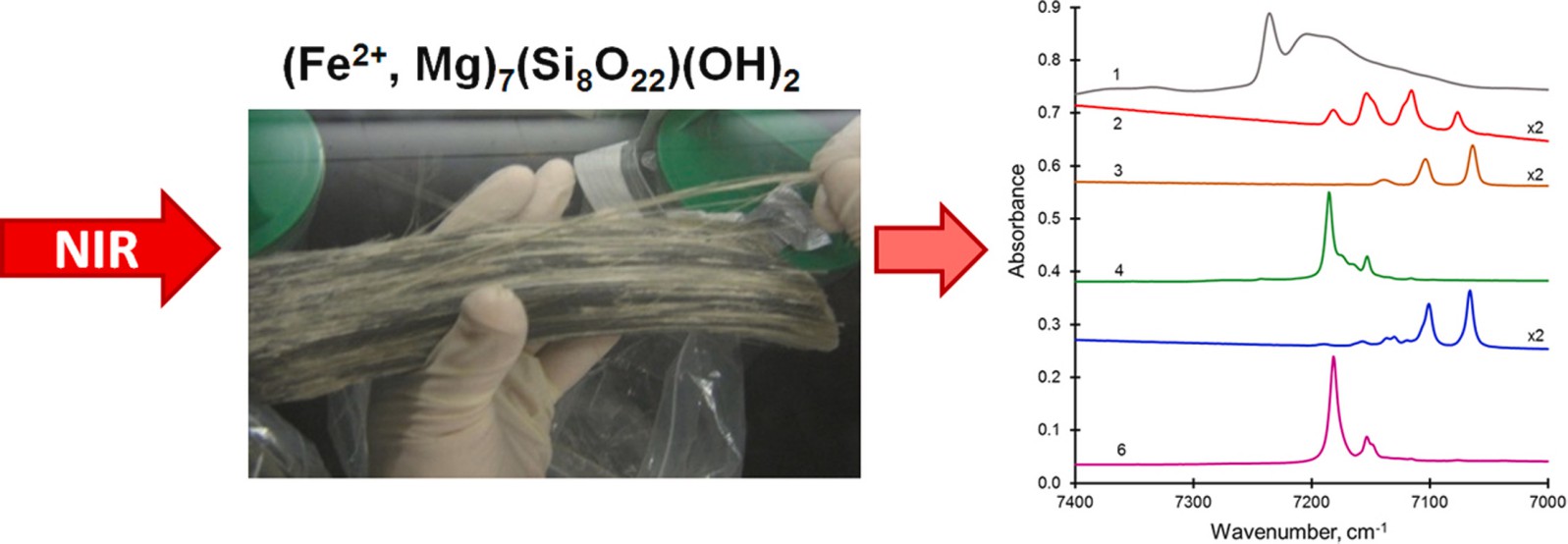

Focusing on the spectral region 7300-7000 cm^-1 (~1370-1430 nm), which is highly specific to asbestos materials, the study optimizes the sensitivity and resolution of NIR instrumentation to achieve detection capabilities superior to 1 wt%. The NIR spectroscopy technique effectively discriminated and identified all six types of asbestos with high accuracy. Computational analysis further streamlined the process, enabling automated, objective evaluation of the spectroscopic data.

This work demonstrates the significant potential of NIR spectroscopy as a powerful tool for on-site asbestos detection in construction materials. The ability to rapidly and accurately identify asbestos types offers considerable advantages for ensuring worker safety and compliance with environmental standards. The study underscores the importance of reliable, non-invasive methods for asbestos detection in real-world applications.

Cai, Changjie, et al. "Asbestos detection with fluorescence microscopy images and deep learning." Sensors 21.13 (2021): 4582.

Asbestos, a fibrous silicate mineral widely used in construction materials, poses serious health risks, including lung cancer and pleural mesothelioma, particularly when fibers become airborne through damage or deterioration of asbestos-containing materials (ACMs). Despite the prohibition of asbestos in many countries, legacy ACMs continue to pose a significant threat. Accurate detection and quantification of asbestos fibers in environmental samples remain critical for public health and safety.

This study focuses on enhancing asbestos detection through fluorescence microscopy (FM) coupled with the state-of-the-art deep learning model, YOLOv4. A comprehensive database of asbestos concentrations (0–50 fibers/liter) was created from labeled FM images, with the YOLOv4 model trained to detect asbestos fibers. The model demonstrated an impressive mean average precision of 96.1%, outperforming traditional counting software (Intec/HU) in terms of accuracy, precision, recall, and F-1 score.

Notably, YOLOv4 significantly improved detection accuracy, especially for samples with low fiber concentrations (<15 fibers/liter), showing superior performance in differentiating asbestos fibers from non-asbestos particles. This methodology promises a breakthrough in asbestos fiber detection, offering a more reliable, accurate, and efficient approach for monitoring environmental exposure and ensuring compliance with safety regulations. The FM-YOLOv4 combination stands out as an effective tool for asbestos fiber analysis in diverse real-world applications.

Kusiorowski, Robert, et al. Journal of Thermal Analysis and Calorimetry (2024): 1-14.

Asbestos-containing cement materials, commonly used in construction, present significant environmental and health risks due to the fibrous nature of asbestos. However, thermal treatment at high temperatures offers a viable method for the safe disposal and potential reuse of these hazardous materials. This study explores the physical and thermal properties of cement-asbestos materials subjected to heat treatment at 1100°C. Five samples from different regions of Poland were analyzed using various instrumental techniques including XRD, XRF, DTA/TG, SEM/EDS, FTIR, and mercury porosimetry.

The findings show that the thermal decomposition of cement-asbestos materials begins with dehydration and dehydroxylation at temperatures up to 800°C. Asbestos fibers undergo transformation between 600-700°C, with significant mass loss (around 25%) observed up to 800°C. Further heating in the range of 1200-1400°C results in minimal mass loss, primarily due to sulfate decomposition. The sintering temperature is found to be around 1060°C, with softening occurring between 1200 and 1300°C, and melting above 1400°C.

Remarkable structural changes, including pseudomorphosis (the preservation of fiber habit), were observed, rendering the material more suitable for reuse in applications requiring high grindability. The results suggest that thermally treated cement-asbestos materials could be safely repurposed in the production of mineral binders, contributing to the sustainable management of asbestos waste.
