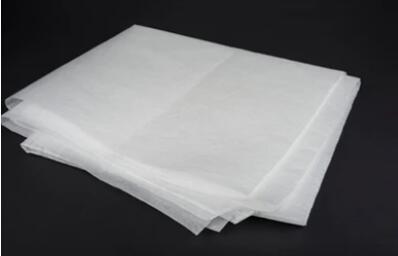

Aerogel paper is a kind of flexible, hydrophobic, high temperature resistant, fire resistant, and energy-saving paper composed of nano-SiO2 aerogel and fiber paper material by a special process. Compared with traditional paper, aerogel paper shows many unique advantages and has received widespread attention in different fields, especially in the electronic field.
Specification
| Items | Parameters |
| Catalog | GEL-AC003 |
| Thickness | 0.1-2 mm |
| Appearance | White |
| Density | 160-180 kg/m3 |
| Thermal Conductivity (25 ℃) | ≤0.022 W/m·K |
| Maximum Temperature Endurance | 600 ℃ |
| Vibration Loss Rate | <0.5% |
| Hydrophobicity | >99% |
| Asbestos | 0 |
| Chloride Ion Content | <0.0005% |
| REACH | ≤0.1% |
| RoHS | Compliance with EU restrictions |
*Note: The product parameters listed on the page are for reference only, and can be customized according to your actual needs.
Features
High temperature resistance:
The product can withstand the high temperature of 600 ℃ under non-open fire conditions.
Easy construction and transportation:
The product has good flexibility and tensile/compressive strength, thus it is easy to cut and transport.
Good thermal insulation:
The product has low thermal conductivity, and the thermal insulation effect is 3-5 times that of traditional fiber cloth.
Environmentally friendly:
The product has passed RoHS and REACH tests and does not contain harmful substances harmful to humans.
Waterproof and breathable:
The product has excellent overall waterproof performance (hydrophobicity>99%), while allowing water vapor to pass through.
Applications
- Used in electronics.
- Used as thermal insulation materials of buildings.
- Used in fire-proof suits.
- Used in the battery pack of plug-in electric vehicles.
Why Choose Us?
Alfa Chemistry is proud to offer high quality aerogel paper to our customers. In addition, you can also customize the product according to your actual needs for product performance and applications. Just call us if you need help, and we will deliver the product on time and under budget.
Please kindly note that our products and services are for research use only.
