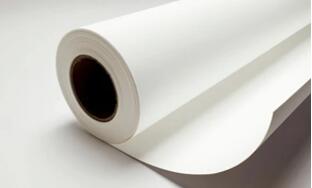

Aerogel insulation film is a kind of film-shaped thermal insulation material that is based on aerogel water-based slurry and prepared by fine coating technology. It is designed to solve the thermal management problems of uniform heating and heat dissipation of precision industrial products in a small space, especially suitable for weak temperature-resistant components. The excellent thermal insulation performance of aerogel insulation film helps to improve the usability and service life of electronics.
Specification
| Items | Parameters |
| Catalog | GEL-AC009 |
| Main Composition | SiO2 |
| Appearance | White |
| Thickness | 0.05-0.3 mm |
| Density | 3 kg/m3 |
| Thermal Conductivity (25 ℃) | 0.018-0.022 W/m·K |
| Temperature Endurance | (-40)-130 ℃ |
| Long-Term Use Temperature | 120 ℃ |
| Dielectric Strength | ≥4 KV/mm |
| Volume Resistance | ≥1.0×1013 Ω.cm |
| Storage | 23±2 °C, 65± 5% relative humidity (RH) indoor environment; 1 year of quality guarantee period after manufacturing |
*Note: The product parameters listed on the page are for reference only, and can be customized according to your actual needs.
Features
- Environmentally friendly: The product does not contain heavy metals and harmful chemicals.
- Thin thickness: Coating thicknesses as low as 0.05 mm have little impact on product size.
- Easy construction: The product is easily cut into different shapes and sizes.
- Low thermal conductivity: The product has excellent thermal balance and thermal insulation ability.
Applications
- Use in tablet PCs.
- Use in projectors.
- Use in set-top boxes.
- Use in digital cameras.
- Use in mobile phones.
- Use in notebook computers.
- Use in liquid crystal displays.
- Use in smart wearable devices.
- Use in other electronic devices with confined spaces.
Why Choose Us?
Alfa Chemistry is proud to offer high quality aerogel insulation film to our customers. In addition, you can also customize the product according to your actual needs for product performance and applications. Just call us if you need help, and we will deliver the product on time and under budget.
Please kindly note that our products and services are for research use only.
